Industrial grouting unit for Big-Bag use
Overview

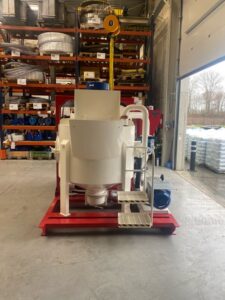

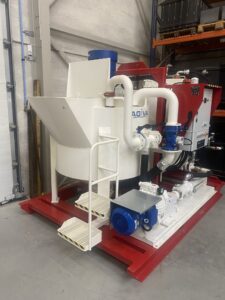

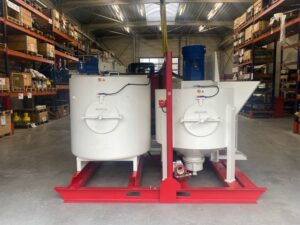

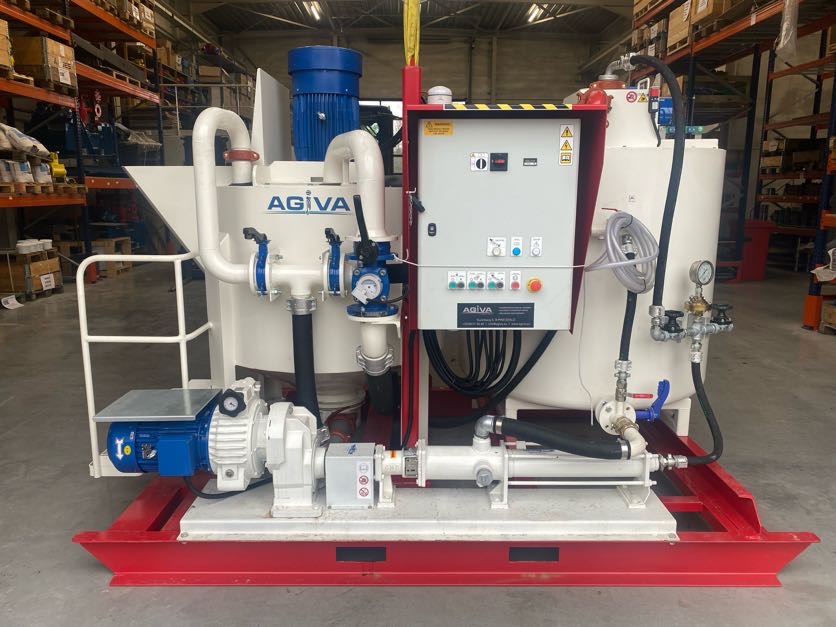

The Lorenzetto TP 1000/1500 for 500 kg bigbags – consisting of:
- colloidal mixer
- buffer tank with agitator
- screw pump
- This ensures that homogeneous mixtures can be made, even for difficult-to-mix products. With a 1500-liter buffer tank, a borehole can be filled in one go.
A wide range of drilling tools and accessories is available to meet any drilling need.
Technical specifications
| • Colloidal Mixer | 1200 liter – mix capacity 7.2 m³/h – Power 22 kW |
| • Agitator tank | 1750 liter – rotation speed 30 rpm – 2.2 kW |
| • Rotor Stator Pump | Flow 9 m³/h – Pressure 30 bar |
| • Dimensons HxLxW | 2400 x 3000 x 2000 mm |
| • Weight | 2900 Kg |
