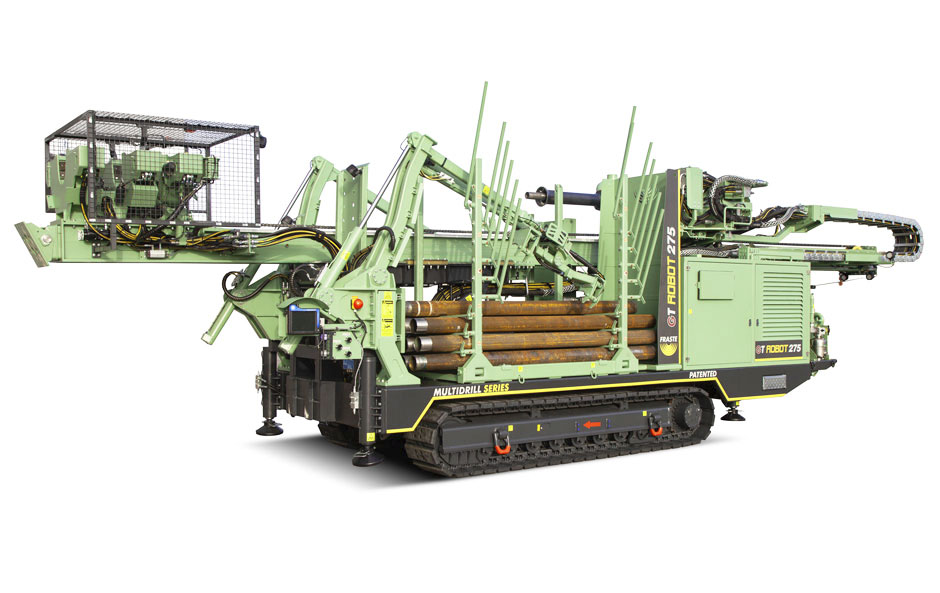

FRASTE GT ROBOT

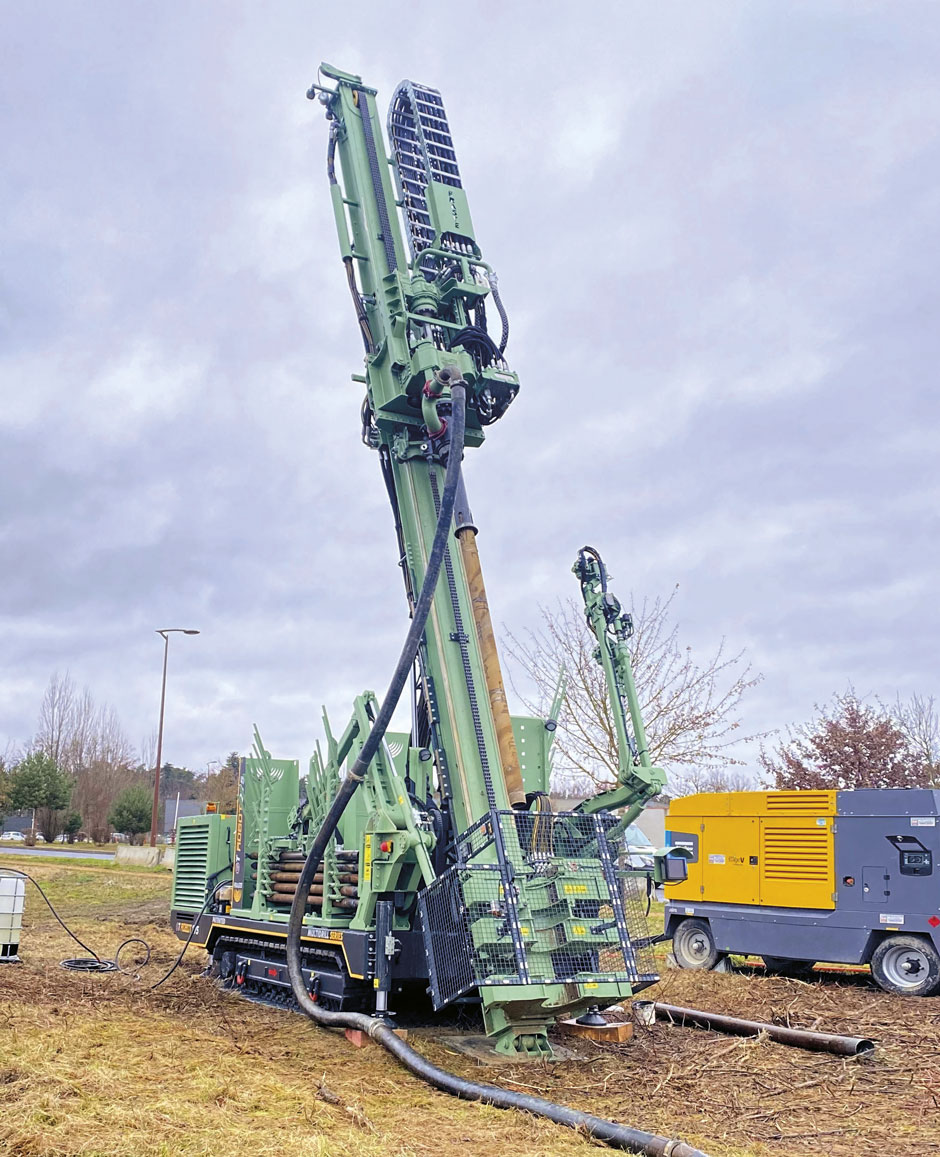

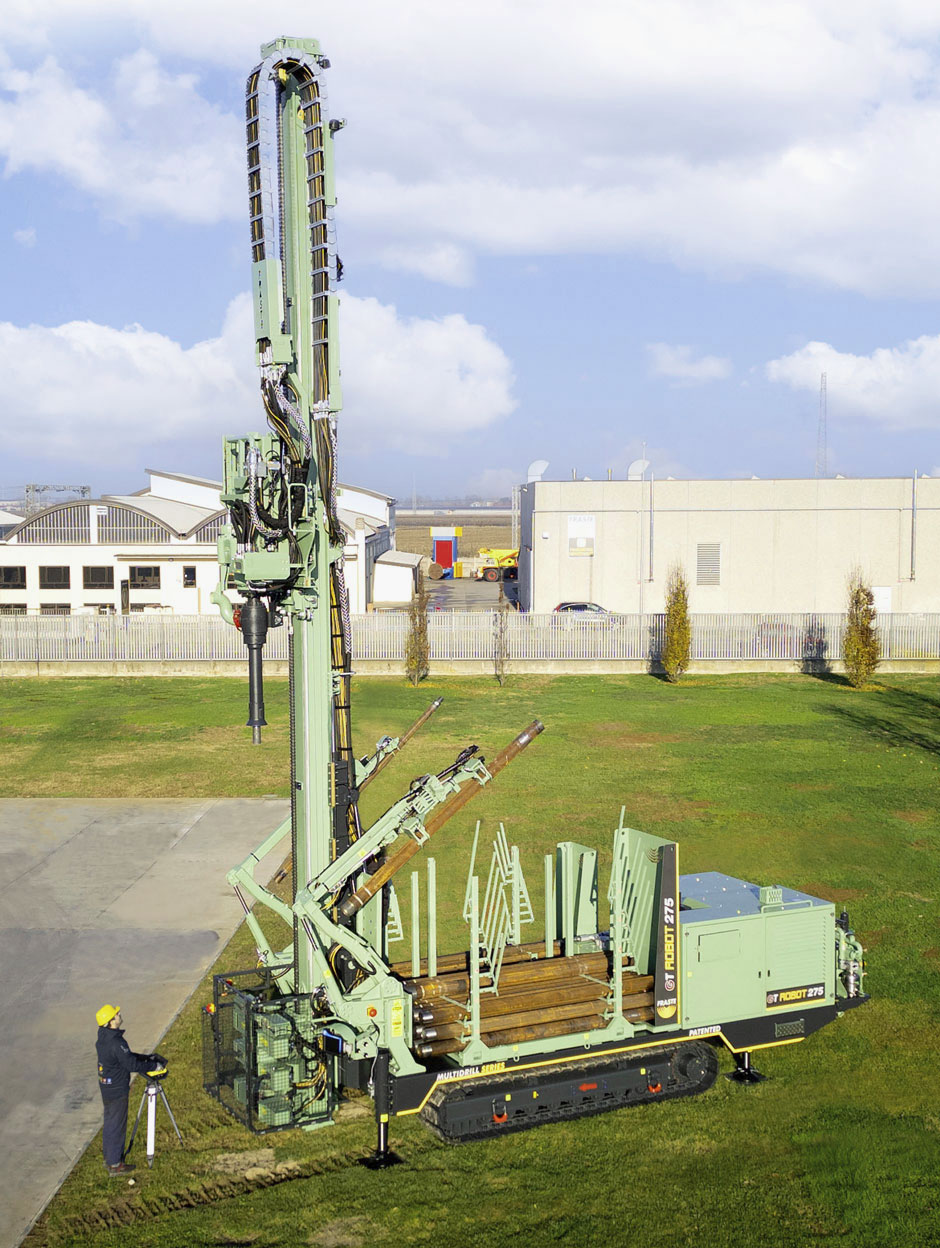

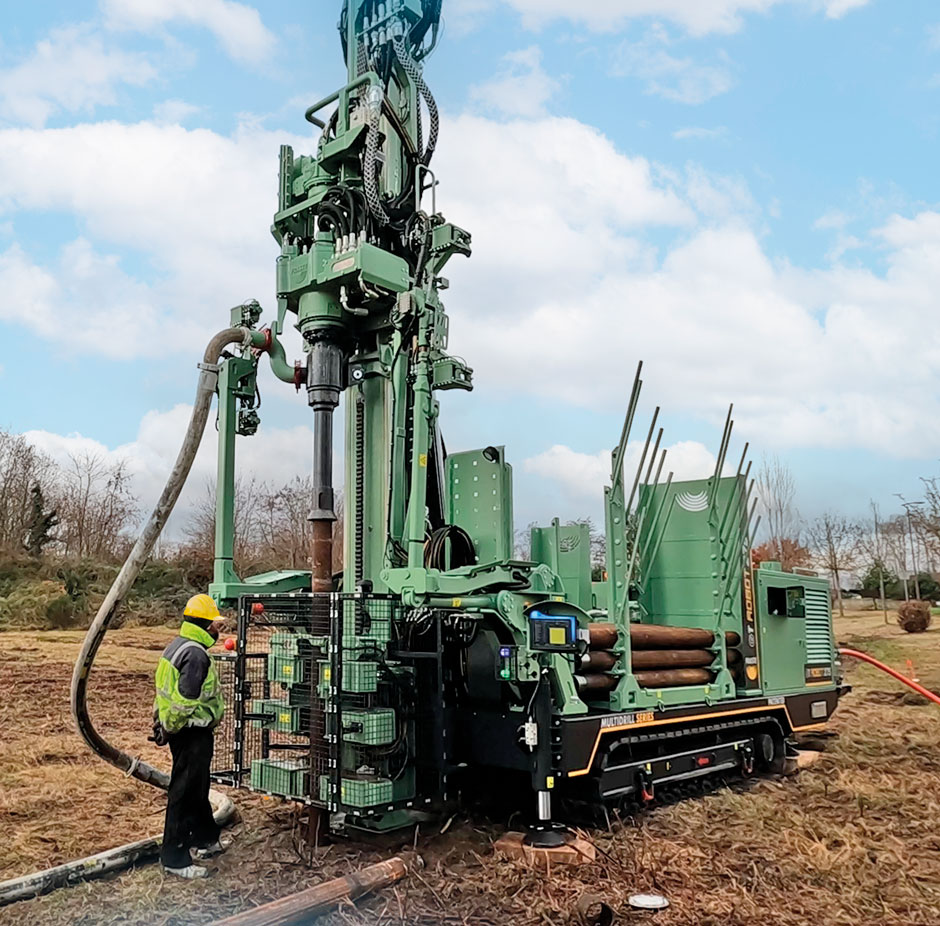

FRASTE GT ROBOT is a revolutionary Double Rotary machine.

With its unique capacity to handle 3 meters drill pipes and casings together, and the double racks with approx. 200 meters capacity on board, for both drill rods and casings, (PATENTED) it is indeed a real ‘’GAME CHANGER’’ in the geothermal drilling market.

In this machine we have also the option of the ‘’AUTONOMOUS RECOVERY SYSTEM’’, for rods and casing, without any operator intervention, (all software – no mistakes) another milestone in the progress of drilling technology.

The GT robot is available in two versions:

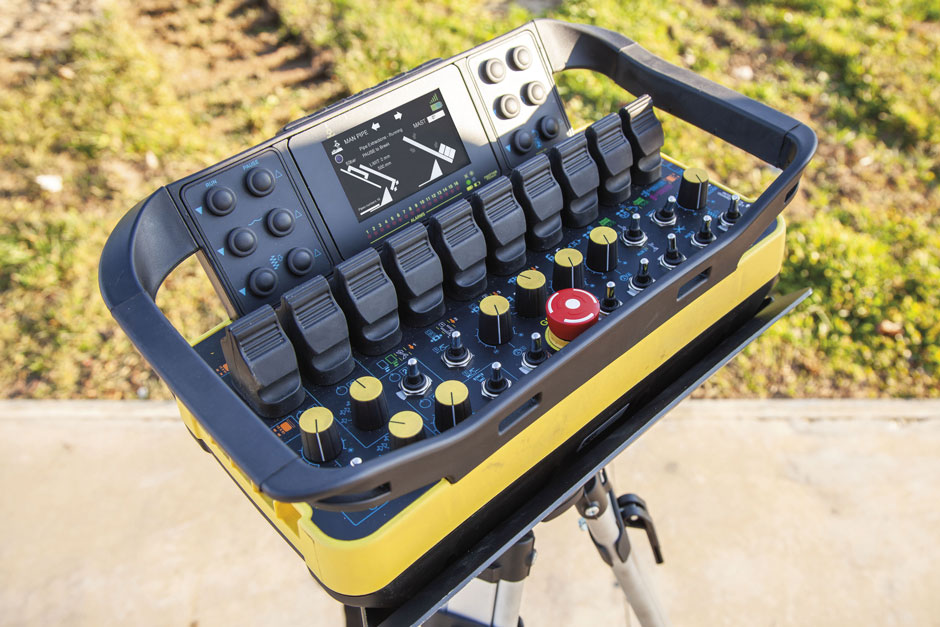

275 HP and 170 HP diesel engine with radio remote control (no physical control panel).

This innovation is the result of the hard work of our team and our constant search for cutting-edge solutions in the drilling industry.

Options on board

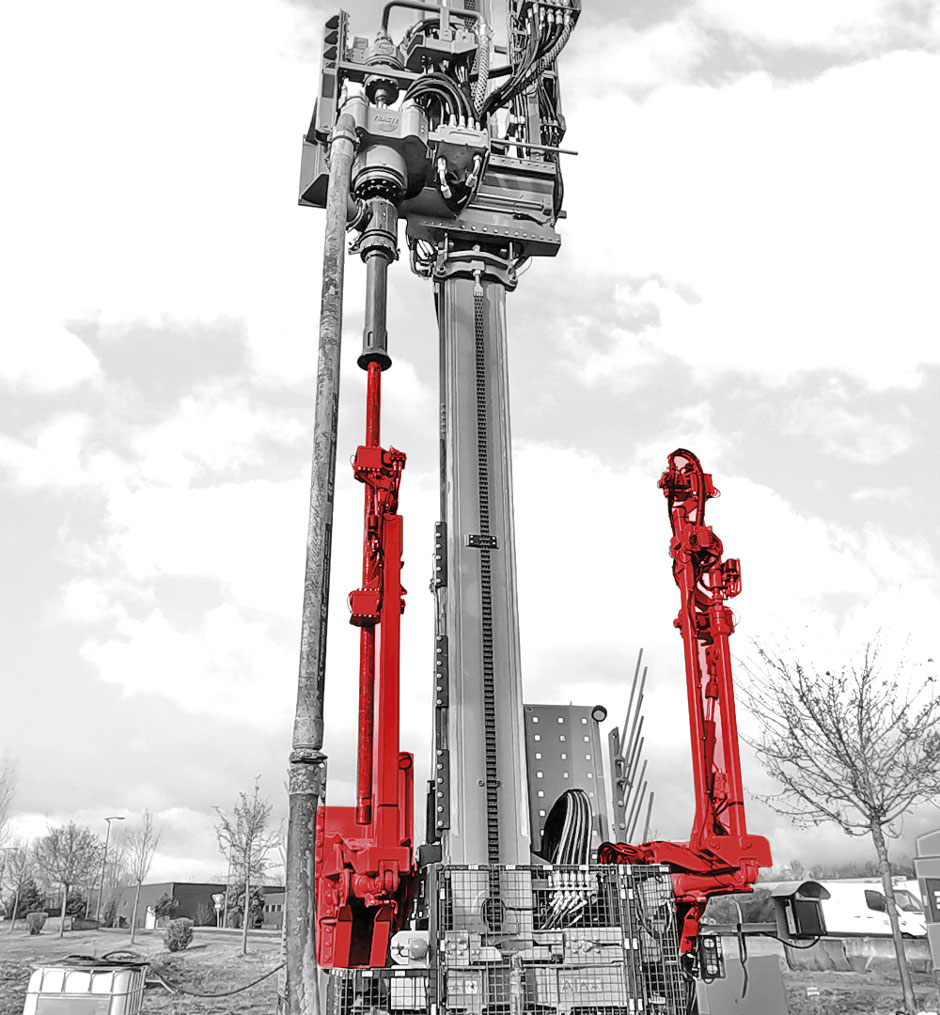

  • Automatic drill pipes recovery

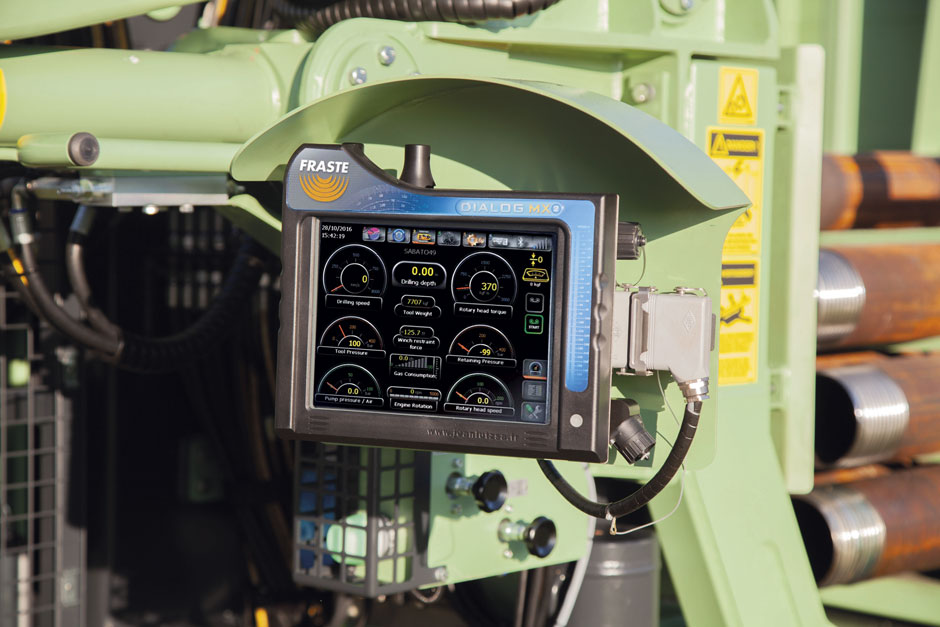

  • Jean Lutz DialogMX onboard
  • Main winch
  • Piston pump
  • Foam Pump
  • Line Lubricator

Other optional items are available on demand for a highly customized version of the rig.

Technical specifications

• Power                                                     CAT C7.1 – Stage V – Tier 4F – 129,4 kw (173,5 Hp)
• Rotary head stroke                                                       8000 mm
• Pull-up                                        18000 daN
• Pull-down                                                                               8000 daN

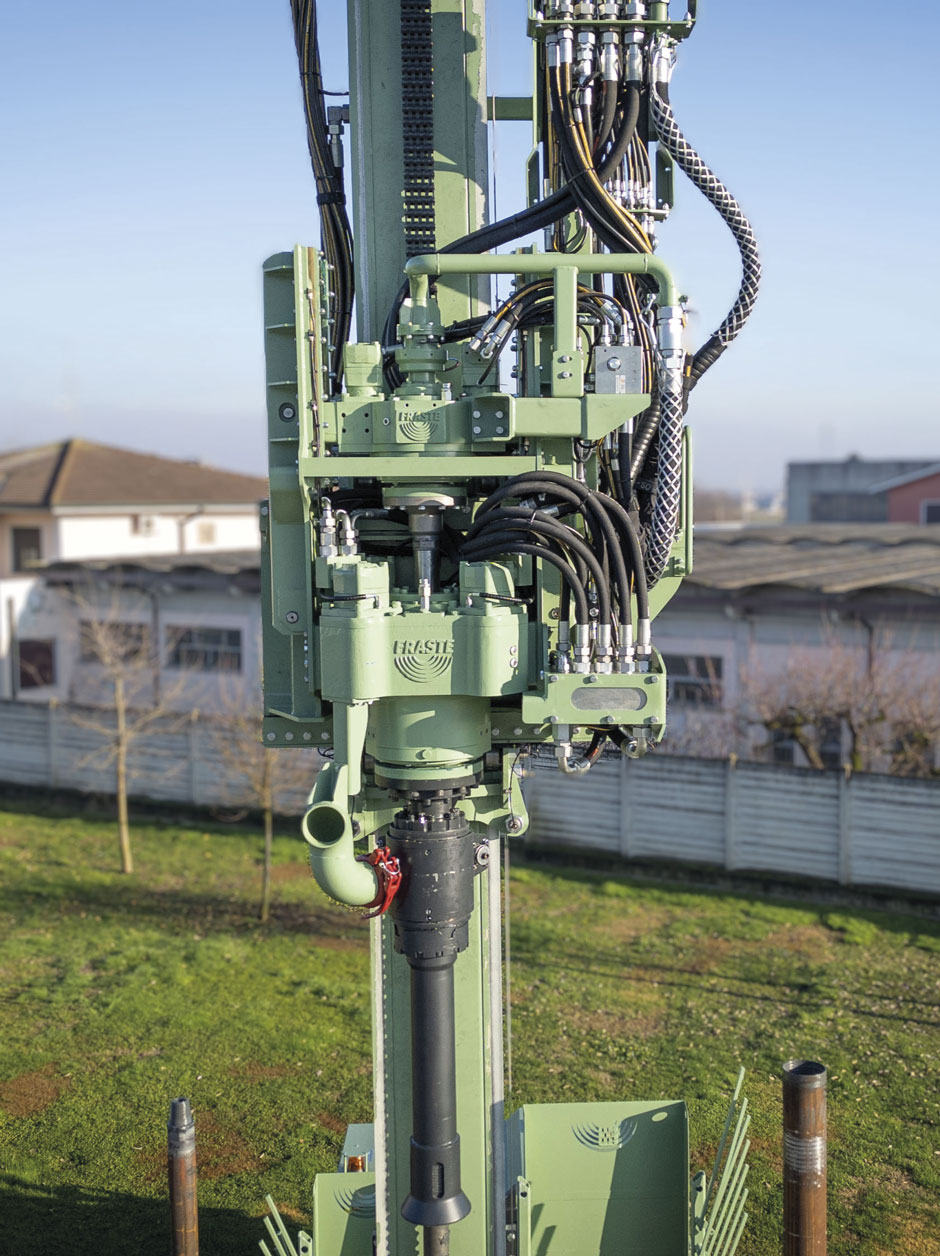

ROTARY HEAD FOR DRILL PIPES
• Max rotary head torque1200 daNm
• Max rotary head speed                                                         160 rpm
ROTARY HEAD FOR CASINGS
• Max rotary head torque3800 daNm
• Max rotary head speed 46 rpm
Storage for drill pipes66 drill pipes Ø 89 x 3000 mm (2″ 3/8 API IF)
Storage for casings66 casings Ø 152 x 3000 mm

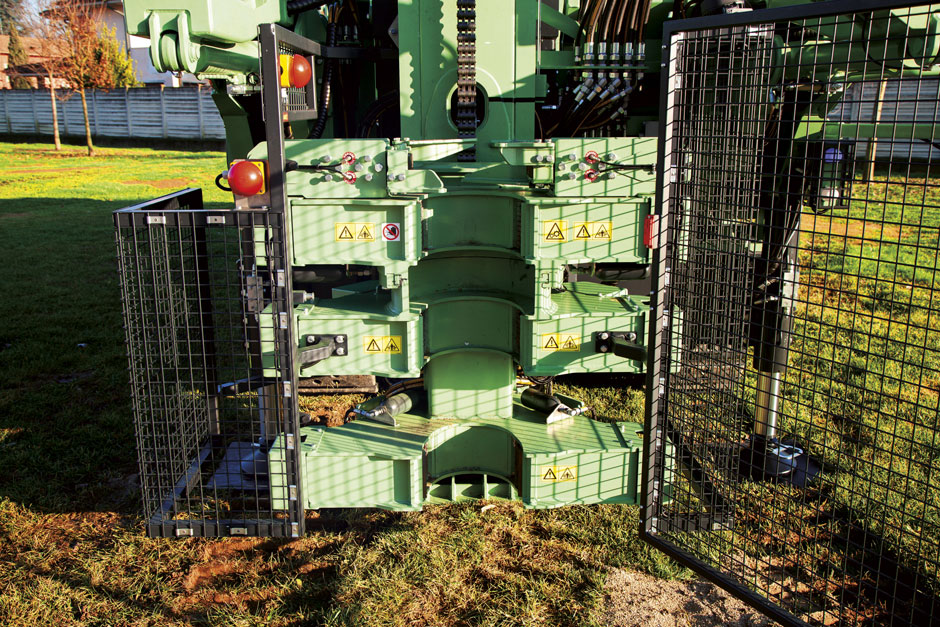

• Clamp                                                                                       Ø 60-355 mm (2,3″-14″)
• Weight (without drill pipes and casings)~ 24220 Kg (~ 31967 lb)
