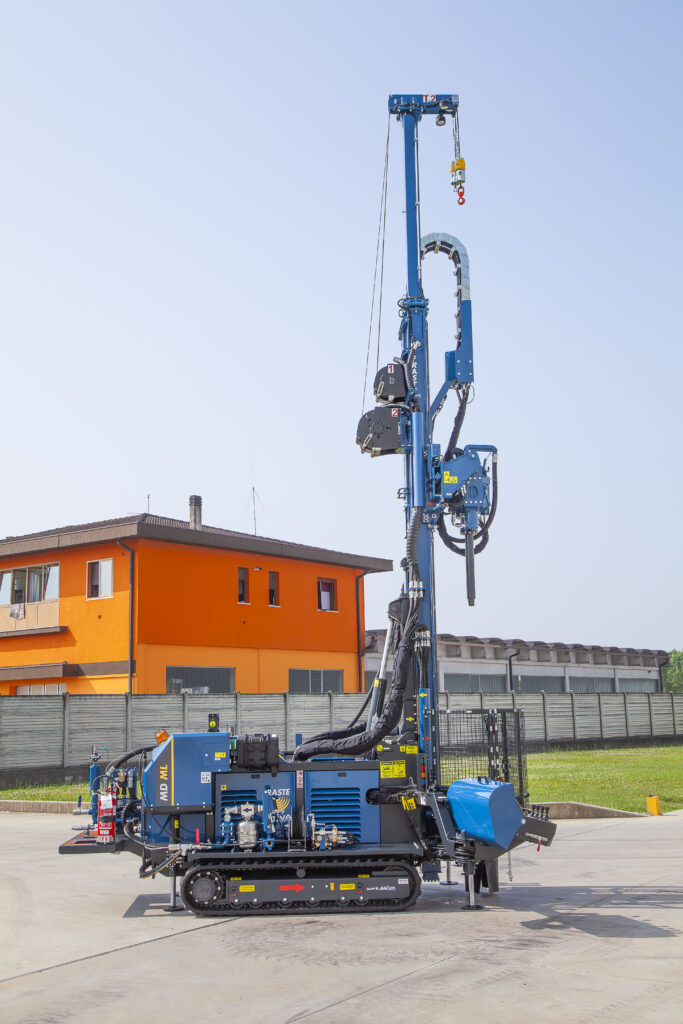

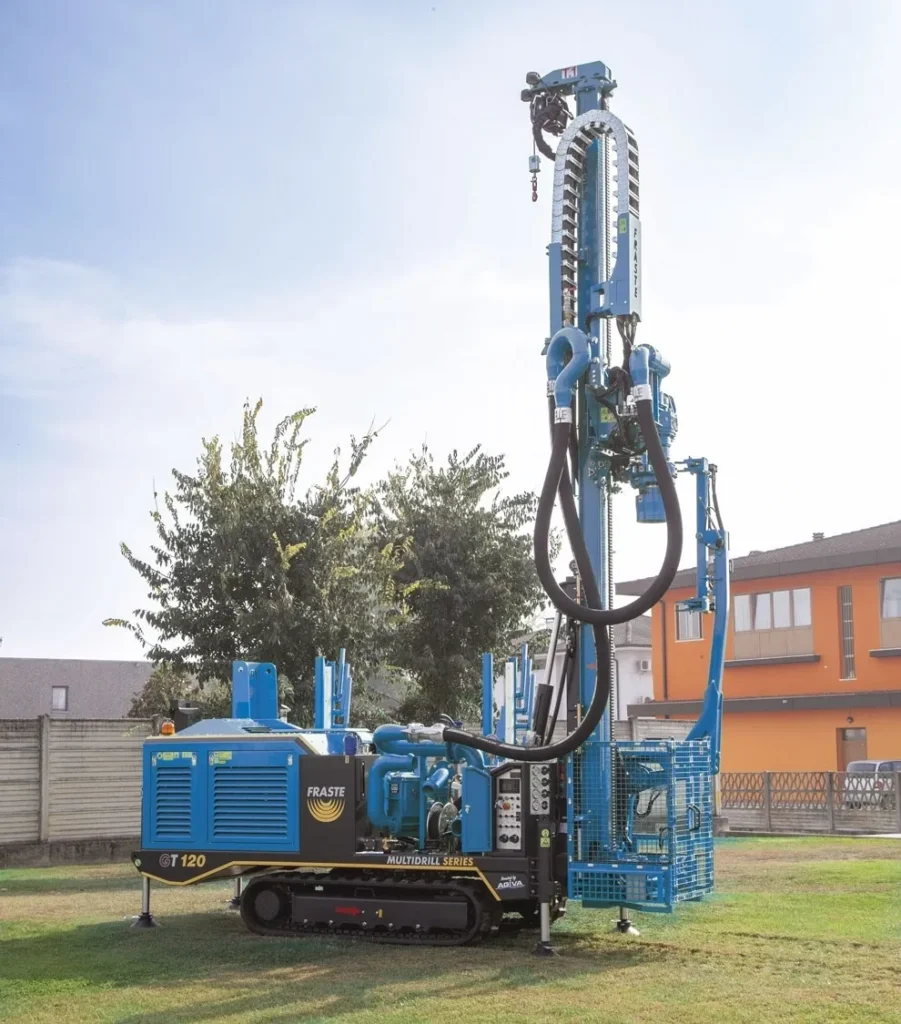

FRASTE Multidrill GT 120

Overview

FRASTE MULTIDRILL GT 120 Drilling Rig including drill pipes – Water Wells & Geothermal

  • Small foot print rig – urban deep drilling
  • Safety first – no manual pipe loading
  • Mud Rotary
  • Automatic Rod Handler with 120 meter pipes on board

MULTIDRILL GT 120 – Highly innovative technical design, cutting-edge hydraulics, Stage 5 Final motor 120 HP, special on board automatic drill pipes loading system Fraste “MANIPULATOR”. Easy and intuitive handling, simple maintenance and Quality in every single detail. Safety at work and environmental protection are ensured by the construction completely in accordance with the European Drilling Machinery Directive and current legislation.

Wide range of drilling tools and accessories are available to meet with any drilling need.

Technical specifications

• Power                                                     CAT C3.6 – Stage V – Tier 4F – 90 kw (120 Hp)
KUBOTA V3800 – Stage IIIA – Tier 3 – 74 Kw (100 Hp)
• Rotary head stroke                                                       4100 mm (11,5 ft)
• Pull-up                                        6000 daN (13488 lbf)
• Pull-down                                                                               3100 daN (6969 lbf)
• Max rotary head torque                       1180 daNm (8703 ft lbf)
• Max rotary head speed                                                     160 rpm
• Clamp                                                                                 Ø 40-250 mm (1,6″-10″)
• Weight                                                                                              ~ 8510Kg (~ 13227 lb) + 1750 kg drill pipes
