FS 600

Overview

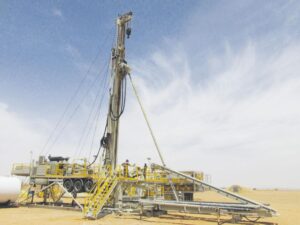

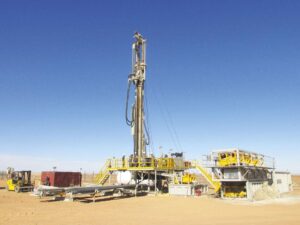

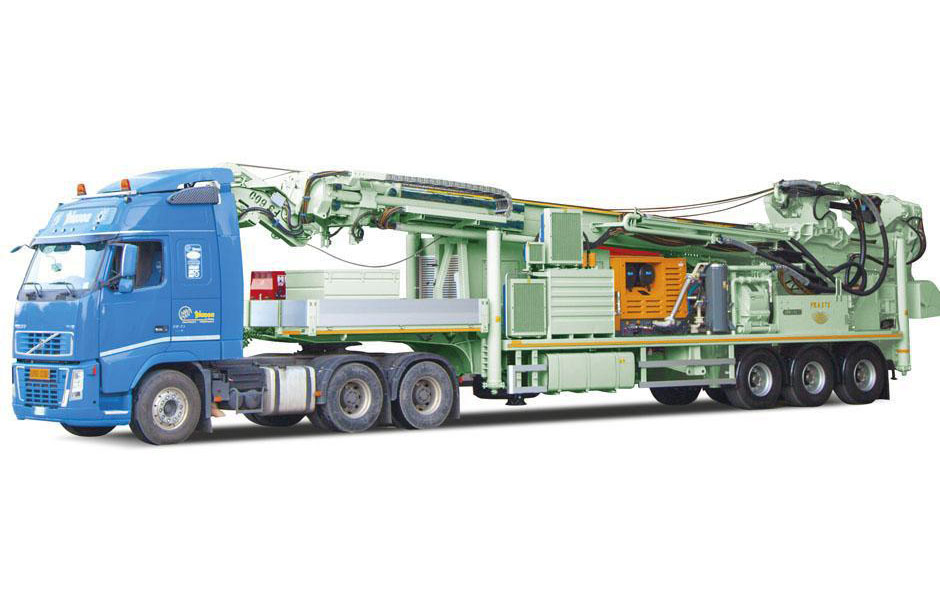

FRASTE FS 600 – Versatile drilling rig designed to operate on platform for deep water wells drilling, but also at ground level, by using stabilizers only, being so perfect for Geothermal works, too. All-hydraulic “Fraste” automatic drill pipes loading system, for 9 mt drill pipes, also suitable for heavy drill pipes and with different diameters. Mast pull-up capacity 60 ton, equipped with telescopic extension for Range 2 casing handling. Separate system for drilling muds treatment and cleaning available. The FS 600 is the result of a high-tech design, a precise mechanical construction and assembly of components produced by worldwide Companies: guaranty of Quality, high Technology, Reliability and Safety.

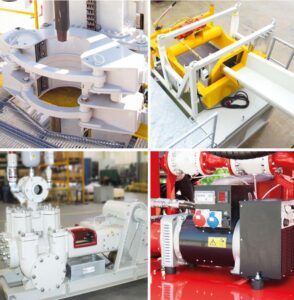

Optional

Other optional items are available on demand for a highly customized version of the rig.

Technical specifications

• Power                                                     CAT – Stage V – Tier 4F – 280-563 kw (375-755 Hp)
CAT / IVECO Stage IIIA – Tier 3 – 261-522 kw (355-710 Hp)
• Rotary head stroke                                                       11000 mm (36 ft)
• Pull-up                                        60000 daN (134885 lbf)
• Pull-down                                                                               35000 daN (478683 lbf)
• Max rotary head torque                       3400 daNm (25077 ft lbf)

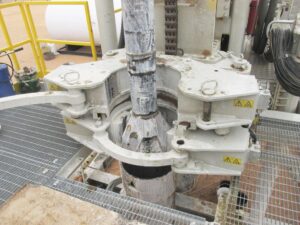

• Clamp                                                                                 Ø 80-520 mm (3,15″-20,5″)
• Rated drilling capacity1200 mt (3937 ft)
