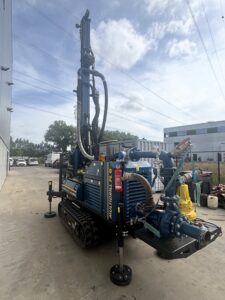

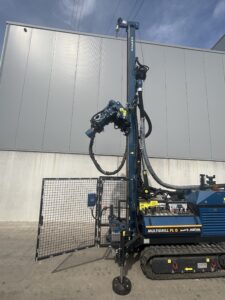

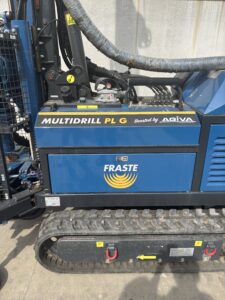

FRASTE Multidrill PL G

Overview

Compact drilling rig, very agile, designed for work in very confined spaces and inside buildings. Ideal for Geothermal and water wells, Micropiles, Geotechnics and Surveys in very limited spaces.

This unit is fitted with a chuck for easy handling of drill pipes.

Drilling Depth: ca 120 meter

Drilling diameter: up to 220 mm

Available with desanding unit

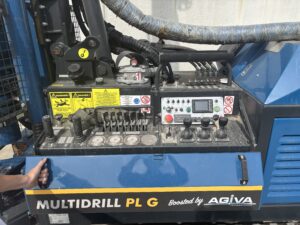

Remote controlled.

Manufactured according to the most current safety and environmental protection regulations and with the quality and attention to details that have always characterized all FRASTE drilling rigs.

Techniques

  • Water Wells
  • Geothermal
  • Geotechnical
  • Mud Rotary
  • Auger Drilling
  • DTHH Drilling

Other optional items are available on demand for a highly customized version of the rig.

Technical specifications

• Power                                                     CAT C2.2 – Stage V – Tier 4F – 55 kw (74 Hp)
• Rotary head stroke                                                       3500 mm
• Pull-up                                        4000 daN
• Pull-down                                                                               2500 daN
• Rotary R06D100 head max torque                       235 / 470 daNm
• Rotary R06D100 head max speed1000 rpm
• Clamp                                                                                 Ø 40-250 mm (1,6″- 9,9″)
• Mud PumpCaprari MEC A2/80A (2200 lpm – 5 bar)
• Weight4350 Kg
